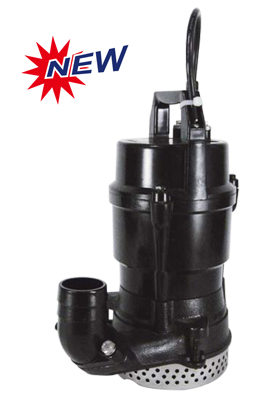

FH-204 / FH-208

Drainage Pump

HOME > Product > FH-204 / FH-208

FH Drainage Pump – The most cost-effective portable pump with compact design and lightweight for various drainage applications.

FH-204 Drainage Pump
0.40 Kw / 1/2 Hp
FH-208
0.75 Kw / 1.0 Hp
  • Outlet – 50 mm (2 in.).
  • Max. head –
    FH-204: 11 m / 36 ft., FH-208: 16 m / 52 ft..
    Max. flow –
    FH-204: 230 l/min / 61 gpm, FH-208: 300 l/min / 79 gpm.
  • Aluminum alloy top cover and motor casing – lightweight with superior heat dissipation.
  • Heat treated 410 stainless steel shaft.
  • Double mechanical seals (SIC/SIC + Carbon-Ceramic) in oil chamber.
  • Dynamically balanced cast iron impeller.
  • Oil-free motor with built-in thermal protector.
  • Max. liquid temperature: 40°C (104°C).
  • Standard cable: 6 m (20 ft.) or longer upon request.
  • Tethered float switch is available: FH-204A and FH-208A.

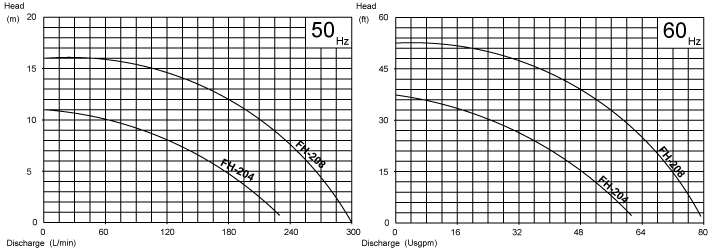

Model Outlet Output Rated Flow @ Head Max. Head & Flow Solid Passage Weight
50Hz 60Hz 50Hz 60Hz
mm in Kw Hp M L/min Ft Usgpm M L/min Ft Usgpm mm in Kgs Lbs
FH-204 50 2 0.4 1/2 7 140 23 37 11 230 36 61 4.5 0.2 11.5 25.3
FH-208 50 2 0.75 1 12 180 39 48 16 300 52 79 7 0.3 13 28.6
